상세 정보 |
|||
| 회로망: | 2.4GHz WiFi(IEEE 802.11 b/g/n) | 빨간색 LED 깜박임: | 전원 확인, Wi-Fi 연결 대기 중 |
|---|---|---|---|
| 전원 유형: | 충전식 18650 배터리 또는 하드 와이어 AC12V-24V | 소비: | 작동 모드: 170mA 대기 모드: 200μA |
| 무게: | 600 g | 픽업 범위: | 5 미터 |
| 작동 습도: | <95> | 메시지 함수: | 메세지 탈퇴 기능을 지원합니다 |
| 셔터: | 초당 1/25~1/100,000 | 상대습도: | 85% 비응결 |
| IR 거리: | 3 미터 | 이미지 센서: | SC2335/SC233A |
| 수평각: | 140 수평각 | 감지 각도: | 110' |
| 기능: | 3G/4G/GPS/WiFi | 힘: | DC12V/2A |
| 이미지 설정: | HD/SD 지원 미러 지원 | 방수율: | IP55 |
| 카메라: | 100만 화소, OV9732(125°광각) | 광각: | 130 급 |
| 화면 크기: | 7 인치 | 카메라 입력 해상도: | AHD1080P/720P/CVBS |
| 센서 유형: | 화면 계산, 98% 정확도 | 호스트 차원: | 200(L) x187(W) x62(H)mm |
| 압축: | H.265 | 전압 입력: | 8~36V 초광각에 적응 |
| 소프트웨어 지원: | CMSV6 및 당사의 프라이빗 플랫폼 | 보증: | 12개월 |
| SDK: | 두 번째 개발을 위한 무료 SDK | 와이파이는 다운로드합니다: | 지원하다 |
| 작동 인터페이스: | 그래픽 사용자 인터페이스(OSD 메뉴) | 맞춤화: | 예 |
| 방수복: | IP69K | 충격 방지: | 이중 진동 방지 |
| 기능: | 인원 계수기, 3G, GPS, G 센서, UPS | ||
| 강조하다: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
제품 설명

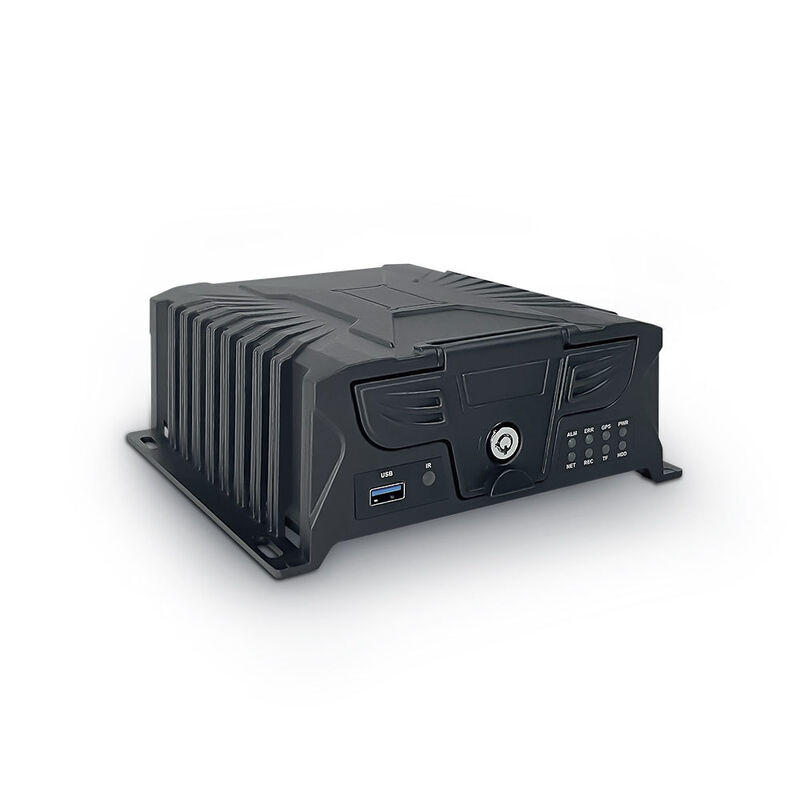

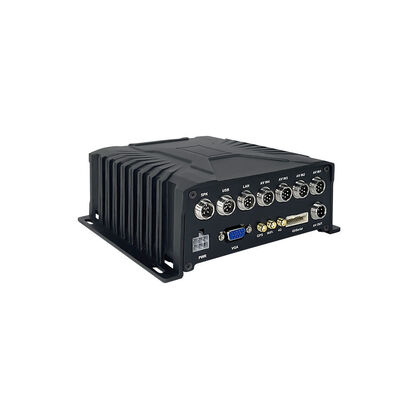

4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
